ES6-20MN-D80 Large Capacity Button Load Cells 2000 Ton

Brand Name : OEM

Model Number : ES6-20MN-D80

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Supply Ability : 100pcs/m

Delivery Time : 35days

Packaging Details : carton

Material : Alloy steel

Theory : Resistance Sensor

Output : digital Sensor

Usage : Pressure Sensor

Capacity : 20MN( 2000t)

name : torsion load cell

Contact Now

ES6-20MN-D80 large capacity button load cells 2000ton

Specifications:

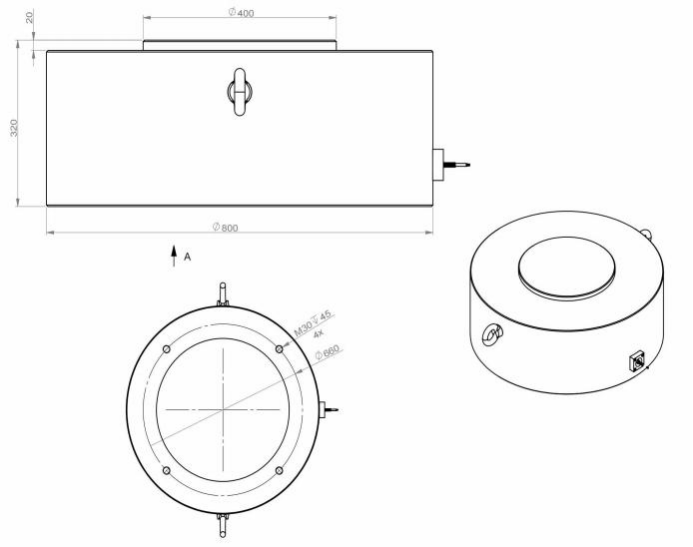

ES6-20MN-D80 Large Capacity Button Load Cells 2000 Ton

技术参数:mm

额定载荷:	20MN(2000t)	推荐激励电压	3.3~ 18V DC
灵敏度:	(2.0±5%) mV/V	最大激励电压:	15V DC
精度	0.5%	材质:	合金钢
输入阻抗:	790±15Ω	密封等级:	IP67
输出阻抗:	702±2Ω	电缆线:	长度: 10m
绝缘电阻:	≥5000MΩ		电源 + :红
工作温度范围:	-40~+70℃		电源 —:黑
安全过载:	150%F.S		信号 + :绿
极限过载:	300%F.S		信号 —: 白
引用标准:	GB/T7551-2008/OIMLR60		屏蔽:黄

Description:

Stronger four-direction side force resistance and overload protection capacity. Moisture proof seal, ideal for hostile environment, Simple to install, good interchangeability. Suitable for various truck scale, railroad scale, etc.

ES6-20MN-D80 Large Capacity Button Load Cells 2000 Ton

Applications:

Weighing functions

Competitive Advantage:

1. We support small orders,fast delivery for customers to save even more valuable time.

2. We have abundant production and export experience ,best price and good quality.

3. We have global market,has been exported to Chile, UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.
